15Ton-50Ton E series/6Ton-50Ton H Series Electric Chain Hoist

Single Speed/Double speed electric chain hoistLifting Capacity:6Ton-50Ton

Single Speed/Double speed electric chain hoist
Lifting Capacity:6Ton-50Ton

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Description Technical Data Features Inquiry

Description

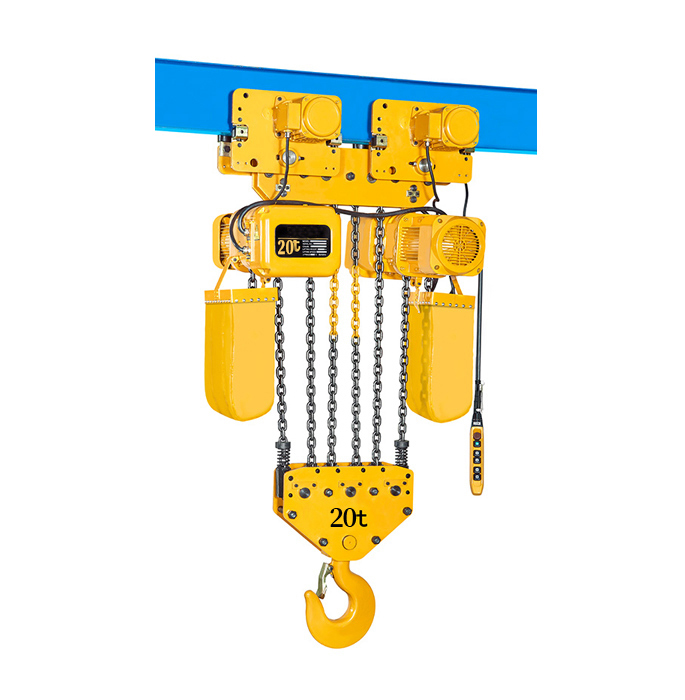

15Ton-50Ton E series/6Ton-50Ton H Series Electric Chain Hoist

Transformer
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.

Technical Data

Capacity (t)	Model	Speed Type	Lifting Speed (m/min)	Lifting Motor Power (kW)	Chain Spec.	Chain Falls	Hoist Dimensions							Electric Trolley								Hoist N.W	Electric Trolley	Manual Trolley N.W
							H	A	B	C	D	E	F	Model	Power (KW)	Operation Speed (m/min )	I-Beam S	H2	R	T	W
																									Enhanced Series
15	SK-150E06	S	2	3*2	11.2	6	1310	745	400	1070	54	535	135	ET-150	0.75,2or0.8/022	10or20or20/5	110-294	1310	142	231	926	396	280	17
		D	2/0.5
		A	02-2.2
20	SK-200E08	S	1.5	3*2	11.2	8	1470	745	400	1260	70	630	136	ET-200	0.75,2or0.8/022	10or20or20/5	110-294	1470	142	231	1106	376	280	22
		D	1.5/0.4
		A	02-1.6
25	SK-250E10	S	12	3*2	11.2	10	1580	745	400	1260	70	725	135	ET-250	0.75,2or0.8/022	10or20or20/5	110-294	1580	142	231	1280	536	280	28
		D	1.2/0.3
		A	0.1-1.4
30	SK-300E12	S	1	3*2	11.2	12	1640	745	400	1400	70	1300	280	ET-300	0.75,2or0.8/022	10or20or20/5	110-294	1640	142	231	1420	1046	280	31
		D	1/0.25
		A	0.1-1.1
35	SK-350E16	S	0.75	3*2	11.2	16	1790	745	400	1600	80	1500	280									1246		44.8
		D	0.750.2											/	/	/	/	/	/	/	/		/
		A	0.07-0.9
50	SK-500E20	S	0.6	3*2	11.2	20	1940	745	400	1815	95	1800	280									1446		58
		D	0.6/0.15											/	/	/	/	/	/	/	/		/
		A	0.06-0.7
Hyper Series
5	SK-050H01	S	3	10/2.5	22	1	1205	1040	460	1040	70	315	45	ET-125	0.75	10or20or20/5	110-294	1500	142	231	660	447	280	10
		D	6/1.5
8	SK-080H01	S	3	10/2.5	22	1	1205	1040	460	1040	70	315	45	ET-125	0.75	10or20or20/5	110-294	1500	142	231	660	447	280	10
		D	6/1.5
10	SK-100H01	S	3	16/4	22	1	1205	1040	460	1040	70	315	45	ET-250	075*2	10or20or20/5	110-294	1600	142	231	1350	500	280	20
		D	6/1.5
12.5	SK-125H01	S	3	16/4	22	1	1205	1040	460	1040	70	315	45	ET-125	0.75	10or20or20/5	110-294	1500	142	231	660	447	280	10
		D	6/1.5
20	SK-200H02	S	1.5	16/4	22	2	1500	1040	360	1040	80	315	45	ET-250	075*2	10or20or20/5	110-294	1600	142	231	1350	500	280	20
		D	1.5/0.4
25	SK-250H02	S	1S	16/4	22	2	1500	1040	360	1040	80	315	45	ET-250	0.75*2	10or20or20/5	110-294	1600	142	231	1350	500	280	20
		D	1.5/0.4
