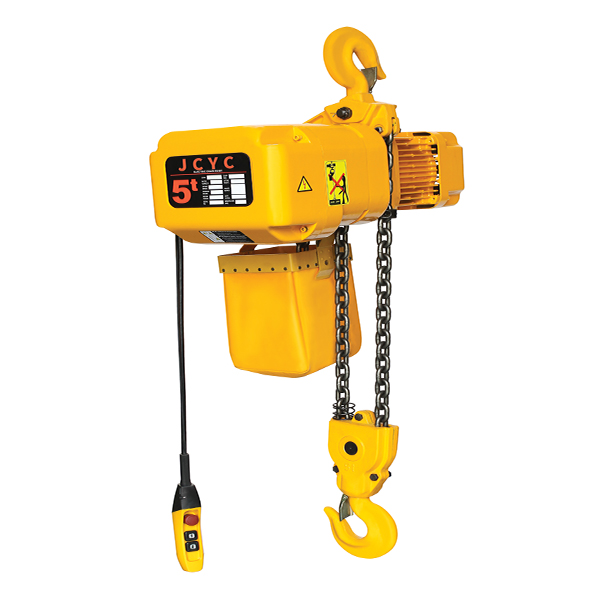

250Kg-10Ton SK Electric Chain Hoist

Single Speed/Double speed electric chain hoistLifting Capacity:250Kg-10Ton

Single Speed/Double speed electric chain hoist
Lifting Capacity:250Kg-10Ton

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Description Technical Data Features Advantages Inquiry

Description

250Kg-10Ton SK Electric Chain Hoist

Transformer
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.

Technical Data

Features

Advantages

Electric Trolley										Manual Trolley						Hoist N.W	Electric Trolley	Manual Trolley N.W	Weight added with 1m Higher M
Model	Power (KW)	Operation Speed (m/min )	I-Beam S	minimum radius of turn	H2	R	T	W	U	Type	I-Beam	minimum radius of turn	H1	M	N
																				ET-005	0.4orO.4/0.1	10or20or20/5	52-153	0.8	380	142	231	191	99	MT-OO3	50-102	0.6	384	163	91	27	42	6	0.55
ET-005	0.4orO.4/0.1	10or20or20/5	58-153	0.8	400	142	231	206	111	MT-OO5	68-130	0.6	410	163	91	42	42	6	0.81
ET-005	0.4orO.4/0.1	10or20or20/5	58-153	0.8	400	142	231	206	111	MT-005	68-130	0.6	410	163	91	42	42	6	0.81
																				ET-010	0.4orO.4/0.1	10or20or20/5	58-153	0.8	430	142	231	206	111	MT-010	68-130	0.6	440	164	90	58	42	6	1.1
																																								ET-020	0.4orO.4/0.1	10or20or20/5	58-153	0.8	640	142	231	237	127	MT-020	68-130	1	645	221	138	96	49	10	1.62
ET-020	0.4orO.4/0.1	10or20or20/5	82-178	0.8	640	142	231	237	127	MT-020	82-153	1	645	221	138	96	49	10	1.62
																				ET-020	0.4orO.4/0.1	10or20or20/5	82-178	0.8	700	142	231	238	127	MT-020	82-153	1	640	221	138	70	49	10	2.3
																																								ET-030	0.4orO.4/0.1	10or20or20/5	100-178	1	650	142	231	265	140	MT-030	82-153	1	645	265	138	112	61	16	2.8
ET-030	0.4orO.4/0.1	10or20or20/5	100-178	1	650	142	231	266	140	MT-030	82-153	1	645	265	138	112	61	16	2.8
																				ET-030	0.4orO.4/0.1	10or20or20/5	100-178	1	790	142	231	267	140	MT-030	82-153	1	860	265	138	119	61	16	4.7
																																								ET-030	0.4orO.4/0.1	10or20or20/5	100-178	1	800	142	231	268	140	MT-030	82-153	1	765	265	138	82	61	16	3.5
ET-030	0.75orO.8/0.2	10or20or20/5	100-178	1.8	865	142	231	296	156	MT-050	100-178	1.2	875	304	157	147	83	16	5.6
																				ET-075	0.75orO.8/0.2	10or20or20/5	100-178	1.8	/	142	231	295	156	/	/	/	/	/	/	262	140	30	8.4
																																								ET-100	0.75orO.8/0.2	10or20or20/5	100-178	2.5	/	142	231	366	191	/	/	/	/	/	/	296	144	30	11
