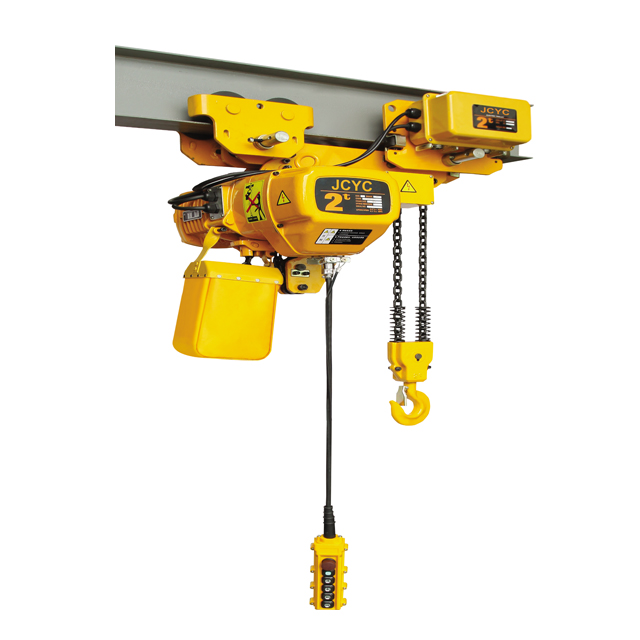

500KG-10Ton Low headroom Type Electric Chain Hoist
Product Features:
JCYC Crane Low Headroom Electric Chain Hoists are designed for those applications wherespace is limited. The units provide smooth,quiet trouble free operation in a variety of Class IlI applications. The units are equipped with the following features:
FEC G80 ultra heat-treated alloy steel chain which is suitable for rain,sea water andchemical environments.
Choices of lug mounted push/pull,hand geared or motorized trolley drives geared limitswitches for both upper and lower hook travel.
Standard voltage is 200-460 Volt, 3phase.
Capacities from 0. 5 ton through 10 tons
Sturdy steel construction
Direct acting motor brakes
| Technical Parameters Single Speed | ||||||||||||||||||
| Type | Capacity (t) |
Lifing Speed (m/min) |
Litting Motor | Operation Motor | Chain Falls |
Chan Spec |
Test Load (t) |
1-Beam (mm) |
weight Added With 1meter chain (Kg) |
|||||||||
| Power (kw) |
Rotation Speed (r/min) |
Phases | Voltage (V) |
Frequency (Hz) |
Power (kW) |
Rotation Speed (r/min) |
Operation Speed m/min |
Phases | Voltage (V) |
Frequency (Hz) |
||||||||
| HSY-00501SL | 0.5 | 6.8 | 0.75 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ6.3 | 0.625 | 60-190 | 0.81 |
| HSY-01001SL | 1 | 6.6 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/0 | 1 | Φ7.1 | 1.25 | 60-190 | 1.1 |
| HSY-01501SL | 1.5 | 8.8 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 1.875 | 82-228 | 23 |
| HSY-02001SL | 2 | 6.6 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 2.5 | 82-228 | 3 |
| HSY-02002SL | 2 | 3.3 | 1.5 | 1440 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ7.1 | 2.5 | 82-228 | 22 |
| HSY-02501SL | 2.5 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.125 | 82-228 | 2.8 |
| HSY-03001SL | 3 | 5.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.75 | 82-228 | 28 |
| HSY-03002SL | 3 | 4.4 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ10.0 | 3.75 | 82-228 | 4.7 |
| HSY-05002SL | 5 | 2.7 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ11.2 | 6.25 | 100-256 | 5.6 |
| HSY-07503SL | 7.5 | 1.8 | 3.0 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | Φ11.2 | 9.4 | 100-256 | 8.4 |
| HSY-10004SL | 10 | 2.7 | 3.0×2 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 4 | Φ11.2 | 12.5 | 120-294 | 11 |
| Technical Parameters Dual Speed | ||||||||||||||||||
| HSY-00501DL | 0.5 | 6.9/2.3 | 0.8/0.3 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ6.3 | 0.625 | 60-190 | 0.81 |
| HSY-01001DL | 1 | 6.9/2.3 | 1.8/0.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/0 | 1 | Φ7.1 | 1.25 | 60-190 | 1.1 |
| HSY-01501DL | 1.5 | 9.0/3.0 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 1.875 | 82-228 | 23 |
| HSY-02001DL | 2 | 6.9/2.3 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ10.0 | 25 | 82-228 | 2.3 |
| HSY-02002DL | 2 | 3.4/1.1 | 1.8/0.6 | 2890/980 | 3 | 200-460 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ7.1 | 25 | 82-228 | 22 |
| HSY-02501DL | 25 | 5.4/1.8 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.125 | 82-228 | 28 |
| HSY-03001DL | 3 | 5.4/1.8 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 1 | Φ11.2 | 3.75 | 82-228 | 28 |
| HSY-03002DL | 3 | 4.5/1.5 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ10.0 | 3.75 | 82-228 | 4.7 |
| HSY-05002DL | 5 | 2.7/0.9 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 2 | Φ11.2 | 6.25 | 100-256 | 5.6 |
| HSY-07503DL | 7.5 | 1.8/0.6 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | Φ11.2 | 9.4 | 100-256 | 8.4 |
| HSY-10004DL | 10 | 27/0.9 | 3.0×2/1.0×2 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 4 | Φ11.2 | 12.5 | 120-294 | 11 |
