Single Speed/Double speed electric chain hoistLifting Capacity:7.5-10T
Single Speed/Double speed electric chain hoist
Lifting Capacity:7.5-10T

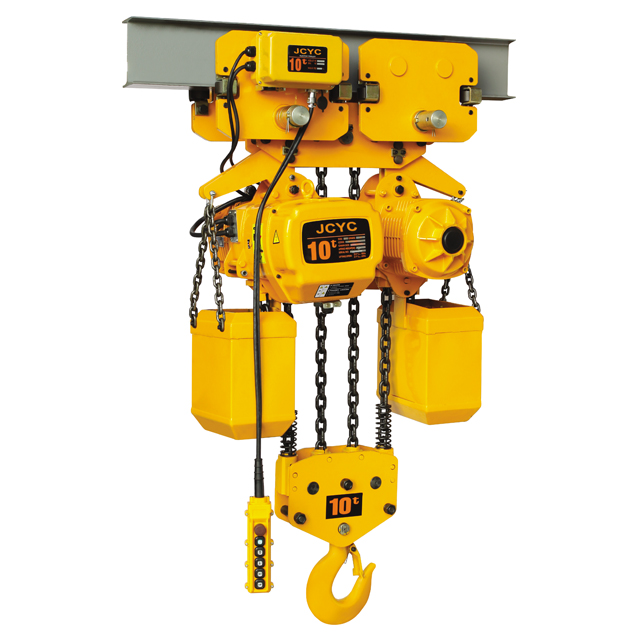

7.5-10Ton Motorized Trolley Type Electric Chain Hoist
Transformer
24V/36V/48V/110V transformer device.This device is used to prohibit unexpected accidents caused by electric leckage andguarantee the safe use while raining.
Shell
It is made of light aliminum alloy shell,light but hard. The cooling fin is especially designed to ensure quick heatdessipation with the rate up to 40% and continuous service.
Side Magnetic Braking Device
The magnetic force generator is featured forgenerating magnetic force. It allows instant brakeas soon as the electric power is cut off,the braking safety while loading is guaranteed.
Limit Switch
The limit switch device is installed to make the motor to stop automatically so as to prohibit the chain from exceeding for safety.
Chain
The chain shall adopt the heat-treatable aluminum alloy chain. It can be safely used in poor environments such as rain,sea water and chemicals.
Hook & Hook Safety Latch
It is hot forging with perfect strength that is hard to break. The operation safety of the lowerhook is ensured by its 360 degrees rotation andsafety flap.
Pendant Control
Ergonomic design for user friendly.Solid and durable, With “Emergency Stop’ button as standard for safety.
| Technical Parameters Single Speed | |||||||||||||||||||
| Type | Capacity (t) |
Lifting Speed (m/min) |
Lifting Motor | Operation Motor | Chain Falls |
Chain Spec |
Test Load (1) |
1-Beam (mm) |
Weight (Kg) |
weight Added With 1meter chain (Kg) |
|||||||||
| Power (kw) |
Rotation Speed (rimin) |
Phases | Voltage (V) |
Frequency (Hz) |
Power (KW) |
Rotation Speed r.min) |
Operation Speed r/min) |
Phases | Voltage (V) |
Frequency (Hz) |
|||||||||
| SY-07503SE | 7.5 | 1.8 | 30 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | 11.2 | 9.4 | 100-256 | 266 | 8.4 |
| SY-10004SE | 10 | 27 | 3.0X2 | 1440 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 50/60 | 4 | 11.2 | 12.5 | 110-294 | 440 | 11 | |
| Technical Parameters Double Speed | |||||||||||||||||||
| Type | Capacity (t) |
Lifting Speed (m/min) |
Lifting Motor | Operation Motor | Chain Falls |
Chain Spec |
Test Load (1) |
1-Beam (mm) |
Weight (Kg) |
weight Added With 1meter chain (Kg) |
|||||||||
| Power (kw) |
Rotation Speed (rimin) |
Phases | Voltage (V) |
Frequency (Hz) |
Power (KW) |
Rotation Speed r.min) |
Operation Speed r/min) |
Phases | Voltage (V) |
Frequency (Hz) |
|||||||||
| SY-07503DE | 7.5 | 180.6 | 3.0/1.0 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 200-460 | 50/60 | 3 | 11.2 | 9.4 | 100-256 | 305 | 8.4 |
| SY-10004DE | 10 | 270.9 | 302102 | 2890/980 | 3 | 200-460 | 50/60 | 0.75 | 1440 | 11/22 | 3 | 200-460 | 50/60 | 4 | 11.2 | 125 | 110-294 | 520 | 11 |
Electric Chain Hoist with trolley
| Size Specification Single Speed | |||||||||||||
| Type | H | A | B | D | E | 1 | K | N | W | U | R | T | |
| SY-07503SE | 1200 | 615 | 295 | 505 | 320 | 54 | 85 | 80 | 55 | 295 | 156 | 142 | 231 |
| SY-10004SE | 1190 | 630 | 315 | / | 890 | 70 | 85 | 80 | 55 | 366 | 191 | 142 | 231 |
| Size Specification Double Speed | |||||||||||||
| Type | H | A | B | D | E | 1 | K | N | W | U | R | T | |
| SY-07503DE | 1200 | 670 | 313 | 505 | 320 | 54 | 485 | 80 | 55 | 295 | 156 | 142 | 231 |
| SY-10004DE | 1190 | 685 | 352 | / | 890 | $70 | 85 | 80 | 55 | 366 | 191 | 142 | 231 |
