Crane end carriage motor

crane spare parts

Power(kw): 0.25~15

Poles: 4~12

Output module: M3/M3.5/M4/M5/M6

Voltage: 3P, 380V

Safety factor: 5 times

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Leave message E-mail

Description Technical Data Inquiry

Description

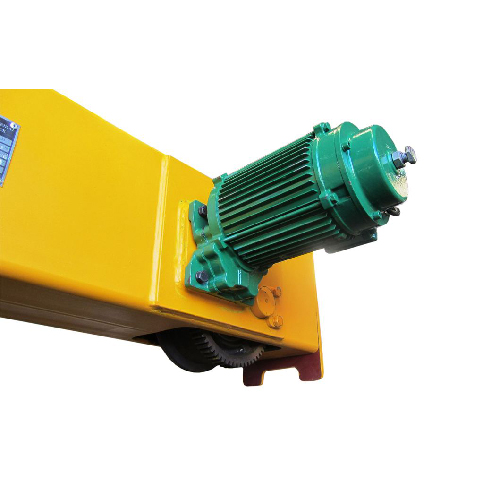

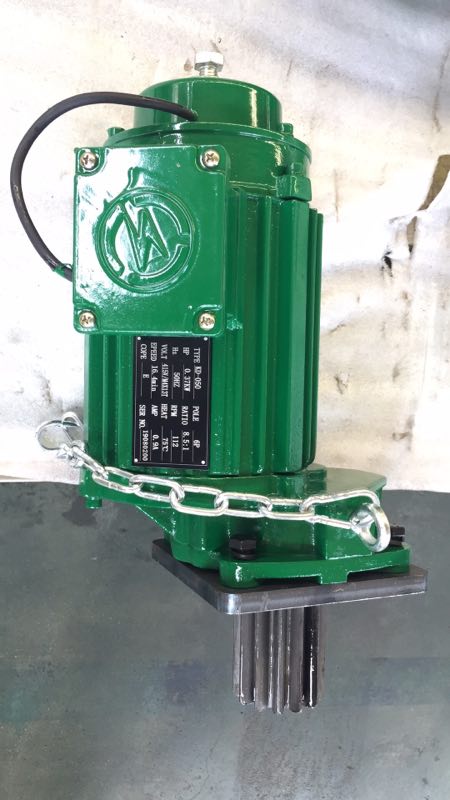

End carriage motor

End carriage motor is very important part for the crane moving. It can be customized according to different specifications of crane no matter single girder crane, double girder crane. Special request for the power supply, with buffer or without buffer, poles, output modules, voltage and so on. Usually the motor is three-in-one motor. We can also equip European type motor like ABM, SEW etc. to the crane end carriage.

Features:

Made of high quality casting iron by high precision CNC lathe processing.
High quality gear has been carefully calibrated and ground, the safety factor is more than 5times.
Easy radiation of heat, high pressure resistant, low noisy, low current with small volume, high output power for high frequency use.
Electric magnetic brake device with high wear-resisting brake, strong power, long service life and high security.

Technical Data

Model	Power(kw)	Poles	Output module	Reduction ratio	Reduction speed(r/min）		Voltage	Weight(kg)	Length(mm)
					50Hz	60Hz
BM-030 No buffer	0.25	4P	M3 M3.5 M4	10:1	150	180	3P,380V	11	368
	0.25	6P			90	120
	0.4	4P			150	180
BM-050 with buffer	0.4	4P	M3 M3.5 M4	8.5:1	176	210	3P,380V	16	394
	0.37	6P			115	140
BM-050QX with buffer	0.75	4P			176	210
	0.6	6P			115	140
BM-100 with buffer	0.75	4P	M3 M3.5 M4 M5	7.7:1	188	228	3P,380V	25	442
	0.6	6P			123	148
	0.4/0.13	4P			188/62	228/75
BM-100QX with buffer	1.1	4P			188	228
	0.75	6P			123	148
BM-150 with buffer	1.1	4P	M3.5 M4 M5	13:1	114	135	3P,380V	47	561
	0.75	6P			67	92
	0.6/0.2	4/12P			114/33	137/45
BM-150QX with buffer	1.5	4P			114	135
	1.1	6P			67	92
BM-200 with buffer	1.5	4P	M4 M5 M6	16:1	92	110	3P,380V	66	627
	1.1	4P			92	110
	1.1	6P			61	73
	0.75/0.25	4/12P			92/30	110/36
BM-200QX with buffer	2.2	4P			92	110
	1.5	6P			61	73
BM-300 with buffer	2.2	4P	M5 M6	16:1	92	110	3P,380V	82	645
	1.5	6P			61	73
	1.5/0.5	4/12P			92/30	110/30
