cable hoist
Capacity(T): 32T
Lifting height(m): 3/6/9/12/18/24/30 or as request
FEM/ISO: 2m/M5
Lifting speed(m/min): 0.8/3.3 double speed
Travel speed(m/min): 5~20 double speed
Power supply: AC, 3-phase, 220~690V, 50Hz

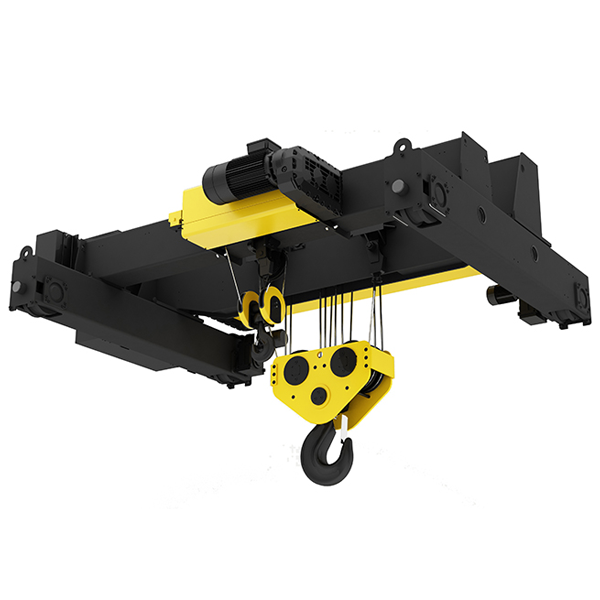

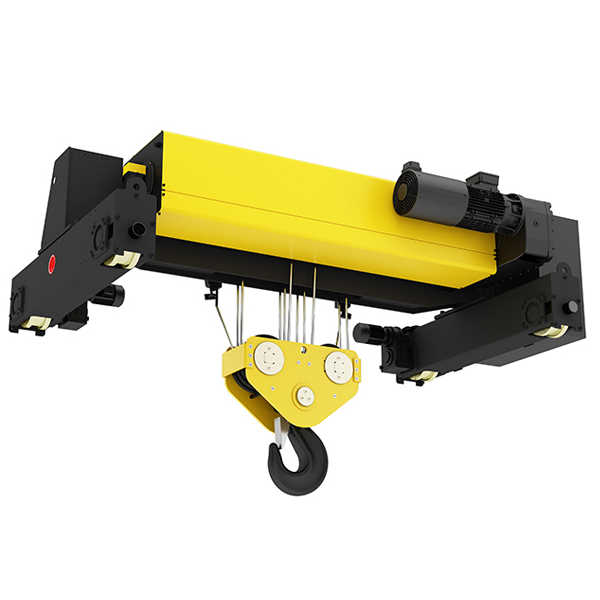

Double girder electric wire rope hoist 32T
Compact structure, light weight, small wheel pressure, maximized use of space, and comprehensive cost-effective.
Selected high-quality components, safe and reliable, durable.
Accurate positioning, efficient operation, and improved logistics efficiency.
Safe and reliable, operation monitoring, easy maintenance.
Modular design, low maintenance cost, perfect spare parts service.
| Lifting height(m) | Working group | Lifting speed(m/min) | Lifting Motor Power (KW) | Travel speed(m/min) | Running motor power(KW) | Hoist N.W(kg) |
| 6 | 2m(M5) | 0.8/3.3 | 5/20 | 5-20 | 2*1.2 | 2050 |
| 9 | 2m(M5) | 0.8/3.3 | 5/20 | 5-20 | 2*1.2 | 2150 |
| 12 | 2m(M5) | 0.8/3.3 | 5/20 | 5-20 | 2*1.2 | 2300 |
| 15 | 2m(M5) | 0.8/3.3 | 5/20 | 5-20 | 2*1.2 | 2400 |
| 18 | 2m(M5) | 0.8/3.3 | 5/20 | 5-20 | 2*1.2 | 2500 |
electric hoist drawing
| Lifting height(m) | L1(mm) | L2(mm) | L3(mm) | L4(mm) |
| 6 | 2000 | 2490 | 864 | 1000 |
| 9 | 2400 | 2890 | 864 | 1000 |
| 12 | 2700 | 3190 | 864 | 1000 |
| 15 | 3100 | 3590 | 864 | 1000 |
| 18 | 3400 | 3890 | 864 | 1000 |
