cable hoist
Capacity(T): 2* (0.25~32)
Lifting height: 6~24 or at request
Hook distance(m): 1.2~7 or at request
Lifting speed(m/min): 3~8
Travel speed(m/min): 20/30
Power supply: AC, 3-phase, 220~690V, 50Hz
Working group: M3

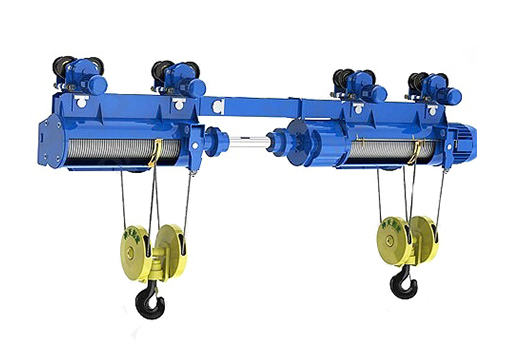

Double lifting point electric hoist for sluice
Double outlet rope | Double lifting point electric hoist in detail
Double lifting point electric hoist is also known as: double hook electric hoist, same rising and falling electric hoist, synchronous connecting shaft electric hoist, conjoined double hook electric hoist, same barrel double hook electric hoist, double hook synchronous wire rope electric hoist, double hook synchronous electric hoist, gate electric hoist Gourd and so on. Coaxial double hook double-speed electric hoist, that is, two hoists connected by a drive shaft are two-speed wire rope electric hoists.
Detailed description of double lifting point electric hoist:
The double lifting point electric hoist is suitable for lifting over-long workpieces or objects. The hook distance can be designed and manufactured according to user requirements. The intermediate drive shaft is used to connect the two upper hoists to achieve the same rise and fall. When the electric wire rope hoist is being raised and lowered, the rope will be wound or lowered along the rope groove on the drum, and the double hook will move to the side at the same time as it rises and descends. The greater the vertical height of the hoisted object from the hoist installation position, the smaller the amplitude of translation. For example: the hoisted object is on the ground, and the hoist is installed at a height of 12 meters above the ground. When the hook is raised to its highest limit, it is 11 meters above the ground. Use a hoist with a lifting height of 12 meters to lift objects on the ground. When it is mentioned at a height of 6 meters, the horizontal movement range is very small. That is, the installation position of the hoist-must be a few meters above the target position of the hoisted object. The greater the distance, the smaller the horizontal movement.
The equipment uses mechanical and electrical synchronization to force the speed of the lifting motor to be synchronized. The two electric hoists adopt a set of electrical control systems to overcome the electrical action error, thereby ensuring that the two electric hoists lift and lift heavy objects at the same time. The equipment is easy to combine, and auxiliary functions such as overload limit, height display and remote control can also be added.
Coaxial double hook double speed electric hoist:
The two hoists connected by the drive shaft are two-speed wire rope electric hoists. It is suitable for lifting long workpieces or objects. The hook distance can be designed and manufactured according to user requirements. Double hook wire rope electric hoist is a customized product, if you need to discuss specific parameters, please call our company.
Lifting weight: 2*10T, 2*16T, 2*32T
Lifting height: H=6M-24M
Hook distance: 1.2M≤L≤7M
The intermediate drive shaft is used to connect the two upper hoists to achieve the same rise and fall. When the electric wire rope hoist is being raised and lowered, the rope will be wound or lowered along the rope groove on the drum, and the double hook will move to the side at the same time as it rises and descends. The greater the vertical height of the hoisted object from the hoist installation position, the smaller the amplitude of translation. For example: the hoisted object is on the ground, and the hoist is installed at a height of 12 meters above the ground. When the hook is raised to its highest limit, it is 11 meters above the ground. Use a hoist with a lifting height of 12 meters to lift objects on the ground. When it is mentioned at a height of 6 meters, the horizontal movement range is very small. That is, the installation position of the hoist-must be a few meters above the target position of the hoisted object. The greater the distance, the smaller the horizontal movement.
