Chain Hoist
Type: YHPE500-4~YHPE750-4
Capacity(kg): 1000~10000
Size（mm): 280
Motor speed（r/min）:1380
Voltage(v):380

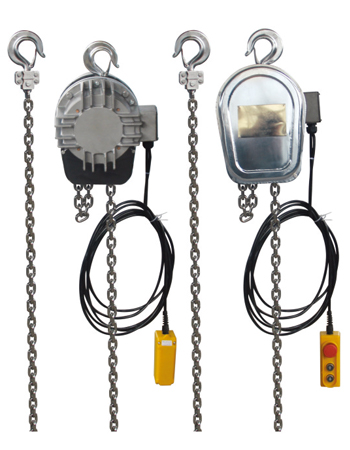

The explosion-proof stainless steel electric chain hoist is made of 304 stainless steel, and its shell is made of 304 thick steel. Its rotating gear is heat-treated at high temperature to achieve high wear resistance. In the operation, the products will not produce mechanical sparks due to mutual friction and impact, and the gas will not be ignited in flammable and explosive places, so as to effectively prevent fire accidents.
| Capacity （kg） |
Lifting speed （m/min） |
Lifting height （m) |
Motor type | Motor Power （w) |
Motor speed （r/min） |
Voltage （v) |
Size （mm） |
Weight （kg） |
||||
| A | B | Hmin | C | D | 3m | |||||||
| 1000 | 2.25 | 3-9 | YHPE500-4 | 500 | 1380 | 380 | 280 | 275 | 520 | 580 | 43 | 40 |
| 2000 | 1.85 | 3-9 | YHPE500-4 | 500 | 1380 | 380 | 280 | 275 | 600 | 630 | 50 | 43 |
| 3000 | 1.1 | 3-6 | YHPE750-4 | 750 | 1380 | 380 | 280 | 275 | 680 | 780 | 63 | 50 |
| 5000 | 0.9 | 3-6 | YHPE750-4 | 750 | 1380 | 380 | 280 | 275 | 710 | 820 | 65 | 70 |
| 7500 | 0.6 | 6-9 | YHPE750-4 | 750 | 1380 | 380 | 280 | 340 | 850 | 970 | 72 | 72 |
| 10000 | 0.45 | 6-9 | YHPE750-4 | 750 | 1380 | 380 | 280 | 358 | 900 | 1050 | 77 | 107 |
Working principle
Adopting star speed reducer and disc motor, it runs smoothly, brakes accurately and safely, and is suitable for all kinds of clean, flammable and explosive working space.
Explosion proof stainless steel chain electric hoist is a kind of simple to use, easy to carry electric lifting machinery, light weight, easy to carry, beautiful appearance, small size, durable.

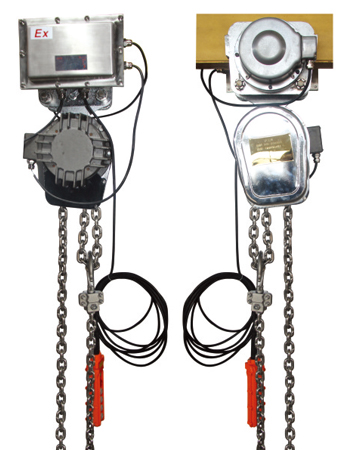

The explosion-proof stainless steel electric hoist and electric monorail trolley can be matched to form an electric lifting and transportation trolley. The explosion-proof stainless steel chain electric hoist can be widely used in petroleum, petrochemical, oil stations, oil depots, gas production, chemical, military, electric power, mining, electronics, railway and other dangerous environments with potential fire and explosion, Effectively prevent fire accidents and ensure the safety of state property and people. It is also an indispensable special tool for machinery manufacturing and maintenance.
