Work load(T): 1.1-5 Experimental load(KN): 27-128 Minimum breaking load(KN): 45.2-214
Work load(T): 1.1-5
Experimental load(KN): 27-128
Minimum breaking load(KN): 45.2-214

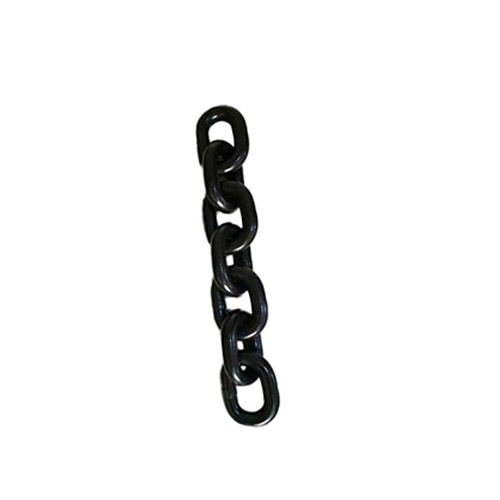

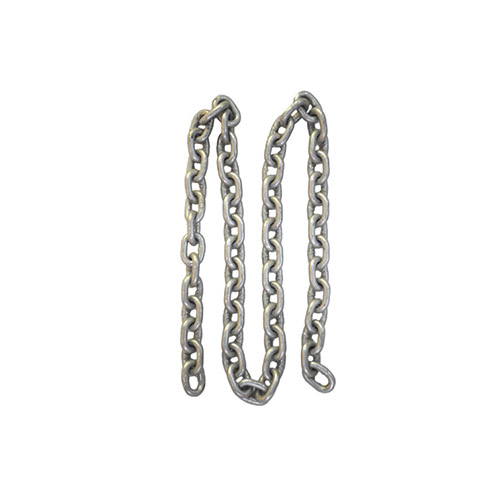

G80 chain
Product features:
Grade 80 high-strength hoisting chain, breaking strength ≥800MPA
The chain parameters provided in the table conform to the JB/T8108.1-1999 standard short-loop chain for lifting.
The chain is made of alloy steel and has been heat-treated and tempered.
Extension at break “17%
| Specification dxp mm | Width | Unit length weight kg/m | Working load
t |
Experimental load
Kn |
Minimum breaking load
Kn |
|
| Minimum inner width | Maximum outer width | |||||
| 6×8 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2 |
| 7×21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8×24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 |
| 10×30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125 |
| 11×43 | 12.6 | 36.5 | 2.33 | 3.8 | 92 | 154 |
| 12×36 | 15 | 42 | 3.1 | 4.6 | 109 | 181 |
| 12.5×38 | 15.5 | 42.2 | 3.3 | 4.9 | 117 | 196 |
| 13×39 | 16.3 | 46 | 3.8 | 5 | 128 | 214 |
