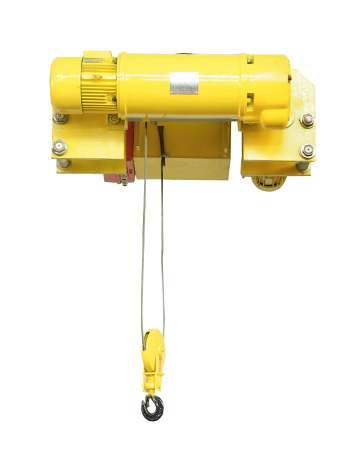

Low headroom electric hoist

cable hoist

Capacity(T): 0.5~16

Lifting height(m): 6~30 or as request

Lifting height(m/min): 8(0.8/8)

Travel speed(m/min): 20/30

Wire rope spec.: 6x37+FC

Power supply: AC, 3-phase, 220~690V, 50Hz

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Leave message E-mail

Description Technical Data Features Inquiry

Description

Brief Introduction

The low headroom electric hoist refers to the electric hoist that reduces the distance from the bottom of the track on which the electric hoist is running to the limit position on the hook, and places the hoist host on the side of the running track to achieve an electric hoist that increases the effective lifting stroke. The product has the characteristics of compact structure, stable operation, etc., and has a wide range of applications. It can effectively increase the lifting height when the height of the new plant is unchanged, or reduce the height of the building when the original lifting height is unchanged. cost

Product advantages:

The leading technical design guarantees the optimized limit size of the product. In the same plant and working area, the application of low headroom electric hoist can cover a larger area and reduce the blind area. 2. If the low headroom electric hoist is used in the plant design stage The parameter design can greatly reduce the requirements for the height of the plant, save investment, increase efficiency and reduce costs for customers
There are various types of low headroom structures, which can be made into 2/1 magnification form, 4/2 magnification form, and vertical form of hoist main machine and running track. The upper limit size is also more than ordinary CD/MD. The gourd is increased by 200~500MM
The whole machine is optimized and designed by CD/MD electric hoist, which ensures the standard and interchangeability of components, greatly improves product quality and reduces product maintenance costs. 5. The whole machine has a compact structure and all counterweights are made of steel plates. , The appearance is beautiful, and the overall size of the whole machine is also reduced
The whole machine is composed of a main engine, a carrying beam, and an electric trolley. The whole structure is easy to disassemble and install, easy to repair and maintain, and the scope of application is good.

Suitable for various material transfer places such as mechanical processing, assembly, warehouse, etc., especially suitable for places where the height of the plant is restricted

Technical Data

Dia.of Wire Rope(mm)	Lifting Motor				Power Supply	Running Motor
	Type	Power(kw)	R.P.M ( r/min)	(A)		Type	Power(kw)	R.P.M ( r/min)	Current(A)
4.80	ZD121-4	0.8(0.2/0.8)	1380	2.2(0.72/2.4)	AC380V,50HZ,3P	ZDY111-4	0.2	1380	0.72
	ZDS1 0.2/0.8
7.40	ZD122-4	1.5(0.2/1.5)	1380	4.3(0.72/4.3)		ZDY111-4	0.2	1380	0.72
	ZDS1 0.2/1.5
11.00	ZD131-4	3.0(0.4/3.0)	1380	7.6(1.25/7.6)		ZDY112-4	0.4	1380	1.25
	ZDS1 0.4/3.0
13.00	ZD132-4	4.5(0.4/4.5)	1380	11(2.4/11)		ZDY112-4	0.4	1380	1.25
	ZDS1 0.4/4.5
15.00	ZD141-4	7.5(0.8/7.5)	1400	18(2.4/18)		ZDY121-4	0.8	1380	2.4
	ZDS1 0.8/7.5
15.00	ZD151-4	13(1.5/13)	1400	30(5.2/30)		ZDY121-4	0.8X2	1380	2.4
	ZDS1 1.5/13
17.50	ZD151-4	13(1.5/13)	1400	30(5.2/30)		ZDY121-4	0.8X2	1380	2.4
	ZDS1 1.5/13
