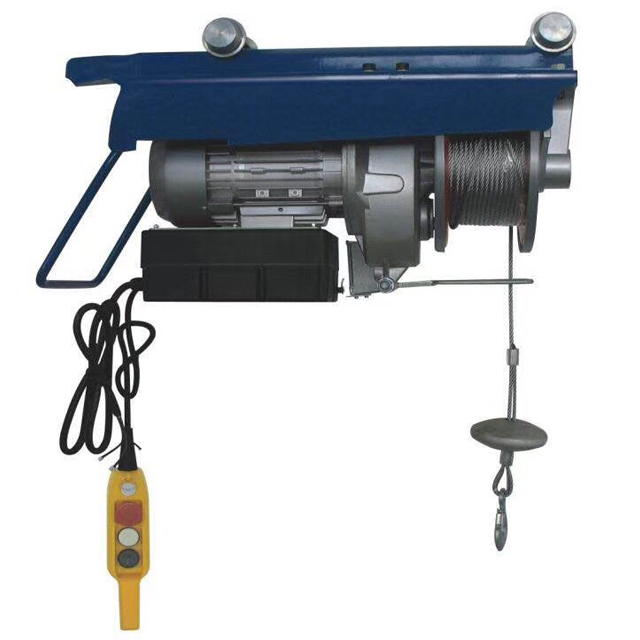

cable hoist
The hoist body is parallel to electric.Compact and high efficient motor,most tensile safety hooks.Compact and beauty chain container.It is made of High Quality alloy material and is forged into a 360 - degrees rotating.Anti-skid hook, the safety performance is higher.
Capacity(kg): 100~1200
Method of use: single-hook /double-hook
Lifting height(m): 12/6 or as request
Lifting speed(m/min): 5~20 for choose

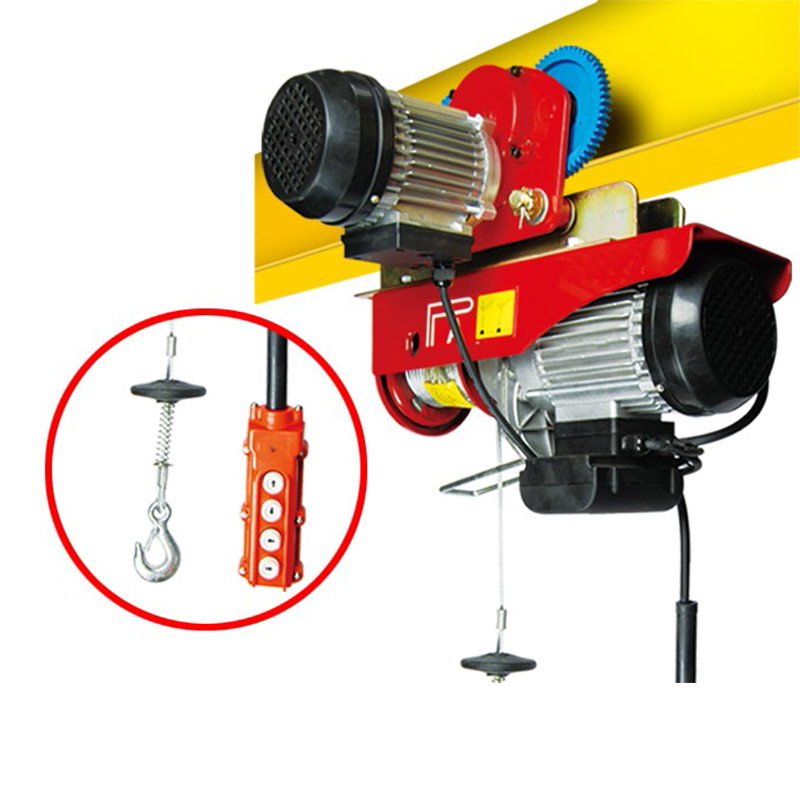

Travel speed(m/min): 13
Power supply: 100/110/120/220/230/240V, single phase
Brief Introduction

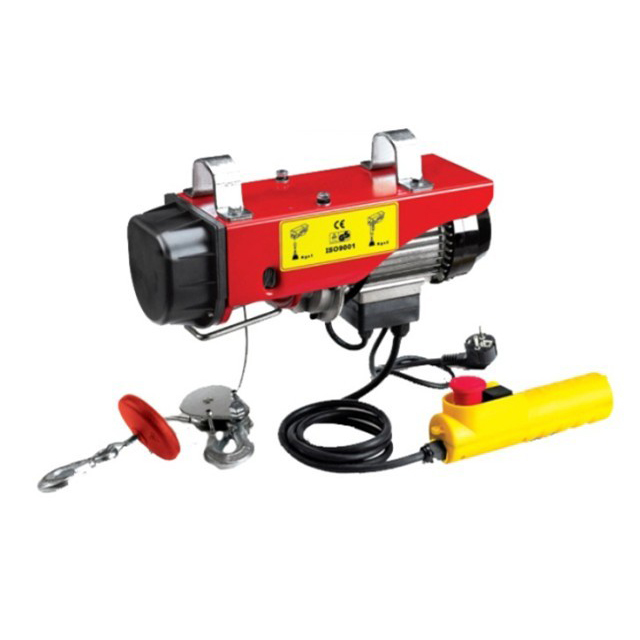

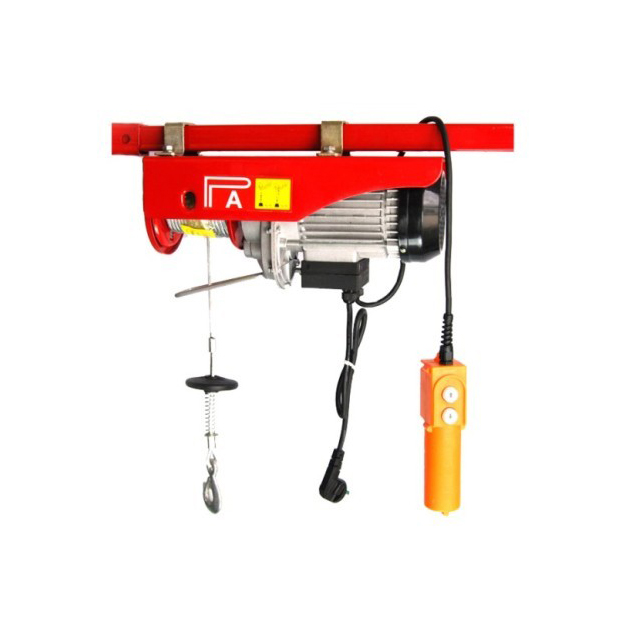

Miniature electric hoist is also called “small crane”, which is suitable for lifting and unloading small pieces of goods in various occasions.
The miniature hoist is simple in structure, easy to install, small and exquisite, uses single-phase electricity as the power source, and can be operated and used at home with 220V.
This kind of miniature electric hoist is widely used in modern industrial production lines, assembly lines, assembly machines, logistics transportation and other occasions such as machinery manufacturing, electronics, automobiles, shipbuilding, workpiece assembly, and high-tech industrial zones. For work in warehouses, wharves, ingredients, hanging baskets and working places with narrow space, it can better show the excellent quality of suspended miniature electric hoists.
The main features of the small crane: with emergency stop switch and forced open limit switch, protection class IP54, with thermal protection device.
| Product model | Capacity （kg） |
Lift height （m） |
Lift speed （m/min） |
Rated input power （w) |
Rated voltage （V） |
Rated frequency （Hz） |
Net weight （kg） |
Matching capacitor （uf) |
Wire rope diameter （mm) |
| PA200 | 100/200 | 12/6 | 10/5 | 510 | 220 | 50 | 11 | 16 | 3 |
| PA300 | 150/300 | 12/6 | 10/5 | 600 | 220 | 50 | 11.5 | 20 | 3 |
| PA400 | 200/400 | 12/6 | 10/5 | 980 | 220 | 50 | 16 | 30 | 4 |
| PA500 | 250/500 | 12/6 | 10/5 | 1020 | 220 | 50 | 16 | 35 | 4 |
| PA600 | 300/600 | 12/6 | 10/5 | 1200 | 220 | 50 | 17 | 40 | 4.5 |
| PA800 | 400/800 | 12/6 | 10/5 | 1300 | 220 | 50 | 18.5 | 45 | 5 |
| PA1000 | 500/1000 | 12/6 | 8/4 | 1600 | 220 | 50 | 31 | 70 | 6 |
