Product

Permanent Magnetic

Capacity:100kg-5000kg Safety factor: 2.5:1 3:1 3.5:1

Capacity:100kg-5000kg

Safety factor: 2.5:1 3:1 3.5:1



Description

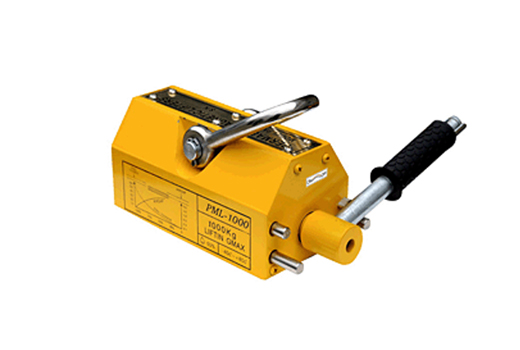

Permanent Magnetic

Product manual:

Magnetic hoist, also known as (permanent magnetic), is mainly used for hoisting operations, and is used to move iron plates, blocks and cylindrical pieces of magnetically conductive materials. The permanent magnetic adopts high-performance magnet materials and is made by the principle of scientific magnetic circuit. Large suction power, small size, light weight, safe and convenient operation. Abandoning the complicated and complicated accessories of lifting electromagnets and the shortcomings of needing to provide power supply, it is an ideal spreader for energy saving. Permanent magnetic are suitable for lifting and handling steel plates at room temperature in shipbuilding, engineering machinery, automobile and other industries, and are widely used in factories, docks, warehouses, and transportation industries.

Features:

  1. Strong suction, safe and reliable, small and compact, easy to operate.
  2. Magnet manufacturing, no demagnetization, no need for electricity.
  3. High-performance magnetic circuit balance design to ensure strong magnetic force and higher safety

Technical Data

Model Rated load
(kg)
Maximum pull-out force(kg) Main size(mm) Net weight
(kg)
Gross weight
(kg)
Package size
(LXWXH)
cm
L L1 W H R
YS-100 100 300 130 85 62 67 155 3 4 23X16X14
YS-200 200 600 199 153 69 73 155 5 6 28X16X16
YS-400 400 1200 210 155 95 92 195 10 11 29X19X19
YS-600 600 1800 265 210 120 115 228 20 22 34X20X23
YS-1000 1000 3000 320 257 53 135 255 37 39 40X23X25
YS-2000 2000 5000 415 345 172 165 355 69 74 51X27X28
YS-3000 3000 7500 500 432 175 165 355 87 92 58X28X29
YS-5000 5000 12500 620 520 230 215 580 198 215 70X38X45
