Level block is a kind of widely used and portable…
Level block is a kind of widely used and portable manual operating hoisting machine, it can be used in machine installation, products lifting, loading and unloading in industry, agriculture, construction and mineral production. It is suitable to be used in the open air and no electric power works.
Capacity：0.75T-6T
Standard lifting height：1.5M

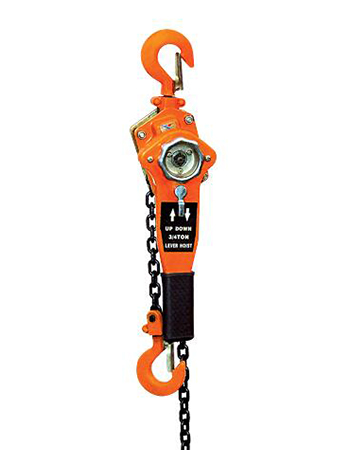

VA chain lever block
Features:
VA chain lever block in detail
VA chain lever block is a kind of light and small, multi-purpose manual lifting and traction machinery, which is widely used in the installation of equipment in the electric power, mining, shipbuilding, construction, transportation, post and telecommunications departments, article lifting, mechanical traction, and spare parts In occasions such as bundling, line tensioning and welding alignment, the hand hoist is especially advantageous in small workplaces, high-altitude operations in the field and various angles of pulling. It is an ideal tool for lifting and handling.
Advantages of VA chain lever block:
6 .All gears rotate;
| Model | 0.75T | 1.5T | 3T | 6T | |
| Capacity(T) | 0.75 | 1.5 | 3 | 6 | |
| Lifting height(m) | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test load(t) | 9.2 | 18.4 | 36.8 | 73.5 | |
| Hand force(N) | 148 | 216 | 336 | 345 | |
| Dia. Of laod chain(mm) | 6.3 | 7.1 | 9 | 9 | |
| Net weight(KG) | 6.6 | 11.65 | 21.1 | 23.7 | |
| Main dimension(mm) | A | 155 | 170 | 198 | 198 |
| B | 128 | 147 | 182 | 230 | |
| C | 310 | 350 | 470 | 590 | |
| D | 240 | 365 | 365 | 365 | |
| G | 28 | 36 | 47 | 49 | |
