Type: VD-1/2~VD-50 Capacity(T): 0.5~50 Lifting height(m): 2.5~3 Test capacity(T): 0.75~62.5…
Type: VD-1/2~VD-50
Capacity(T): 0.5~50
Lifting height(m): 2.5~3
Test capacity(T): 0.75~62.5
Full load pull force (N): 225~450
No. of Chain: 1~22
Dia. of chain(mm): 6~10

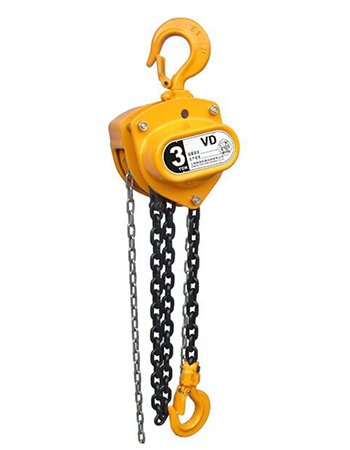

VD type chain block is an improved product with more reasonable mechanism and small volume, Japanese double bearing design makes the chain pull more smoothly, avoids the chain jam and other phenomena, and is close to the market needs. It has been sold well in domestic and foreign markets. It is a widely used and portable manual lifting machine, which can be used for machine installation, goods lifting, vehicle unloading, etc. in industry, agriculture, construction industry, mining industry, etc., especially for open-air and no power operation
| Type | VD-1/2 | VD-1 | VD-1 1/2 | VD-2 | VD-3 | VD-5 | VD-10 | VD-20 | VD-30 | VD-50 |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Lifting height(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test capacity(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 27.5 | 62.5 |
| Min. distance between two Hooks (mm) | 270 | 270 | 368 | 444 | 486 | 616 | 700 | 890 | 980 | 1300 |
| Full load pull force (N) | 225 | 309 | 343 | 314 | 343 | 383 | 392 | 392 | 450*2 | 450*2 |
| No. of Chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 22 |
| Dia. of chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 | 10 |
| G.W(kg) | 12 | 13 | 20 | 17 | 28 | 45 | 83 | 193 | ||
| Size(L*W*H)cm | 28X21X17 | 30X24X18 | 34X29X20 | 33X25X19 | 38X30X20 | 45X35X24 | 62X50X28 | 70X46X75 | ||
| Increase one meter chain, the weight increase(kg) | 1.6 | 1.6 | 1.9 | 2.2 | 3 | 4.6 | 9.6 | 19.4 | 28.3 | 50 |
