Level block is a kind of widely used and portable…
Level block is a kind of widely used and portable manual operating hoisting machine, it can be used in machine installation, products lifting, loading and unloading in industry, agriculture, construction and mineral production. It is suitable to be used in the open air and no electric power works.
Capacity：0.75T- 6T
Standard lifting height：1.5M
Features of VL chain lever block:

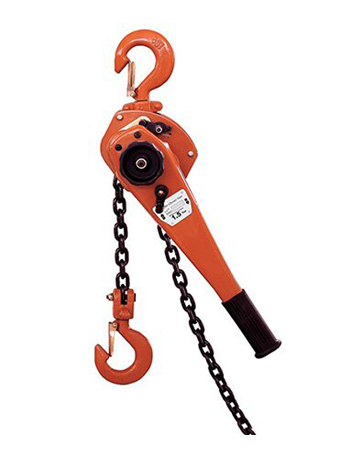

VL chain lever block in detail
VL chain lever block is a light and small, multi-purpose manual lifting and traction machine. New, efficient, safe and durable, it has three functions of lifting, traction and tensioning. The structure of the whole machine is reasonable, the safety factor is high, and the service life is long. It is especially suitable for the condition of no power source in the field. VL type lever hoist is suitable for various sites such as factories, mines, construction sites, docks, transportation, etc. It is an ideal tool for equipment installation, cargo lifting, object fixing, lashing and traction, especially for traction at any angle and in a narrow site , In the case of outdoor operation and no power supply, it shows its superiority.
| Model | 0.72Ton | 1.5Ton | 3Ton | 6Ton | |
| Capacity(T) | 0.75 | 1.5 | 3 | 6 | |
| Lifting height(m) | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test load(t) | 9.2 | 18.4 | 36.8 | 73.5 | |
| Hand pull force(N) | 148 | 216 | 336 | 345 | |
| Dia. Of load chain(mm) | 6.3 | 7.1 | 9 | 9 | |
| Net weight(KG) | 6.6 | 11.65 | 21.1 | 23.7 | |
| Main dimension(mm) | A | 155 | 170 | 198 | 198 |
| B | 128 | 147 | 152 | 230 | |
| C | 310 | 350 | 470 | 590 | |
| D | 240 | 365 | 365 | 365 | |
| G | 28 | 36 | 47 | 49 | |
